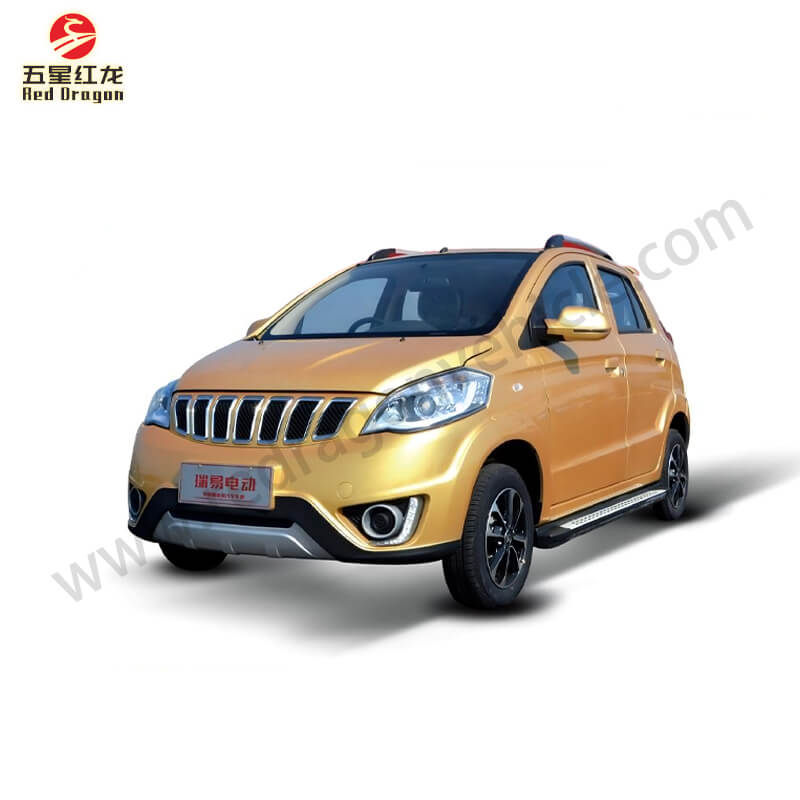

PortuguêsManufacturer REVEY R5K Electric Vars Made in China Mini New
Shipping :
Support Sea FreifgtCustomization :
Customized Logo, Customized PackagingDelivery Time :
By ProductWarranty :
By Product
Shipping :
Support Sea FreifgtCustomization :
Customized Logo, Customized PackagingDelivery Time :
By ProductWarranty :
By ProductSpecification：
| Dimensional Parameters | |
| Length*Width*Height | 3461mm*1560mm*1470mm |
| Wheelbase | 2260mm |
| Front/Rear Wheelbase | 1360mm/1360mm |
| Number Of Doors | 5 |
| Performance Parameters | |
| Maximum Speed | 42km/h |
| 20°C ambient range (iso) | 130Km-150Km |
| Maximum Gradeability | ≥20% |
| Basic Structure | |
| Body | Load-Bearing Body |
| Function Mode | Sport mode (high and low speed conversion) |
| Seating capacity (with driver) | 4 |
| Motor | 72V - 4.2kw |
| Battery | Lead-acid battery 12V - 100Ah - 6 Pieces |
| Reduction Gear | Single stage main reduction and differential assembly |
| Braking System | Power assisted braking |
| Steering System | Electric power steering (optional) |
| Drive Type | Rear Front Drive |
| Suspension | Front suspension MacPherson independent suspension Rear suspension longitudinal arm non-independent suspension |
| Tyres/Rims | 155/65 R13/aluminium alloy rims |
| Entertainment System | 7" DVD + Bluetooth connection with USB + SD card slot |
| Functional Equipment | Tailgate with luggage rack with high-mounted brake lights Folding rear-view mirrors with adjustable seats ISOFIX child restraint system Front seat belts Reversing camera Manual anti-glare interior rear-view mirror Four-door power glass Four-door central locking |
HAILONG MODEL： H01 Lithium Iron Phosphate Battery Cruising Range (NEDC ) ≥260 Battery Capacity: 30 KW/H
