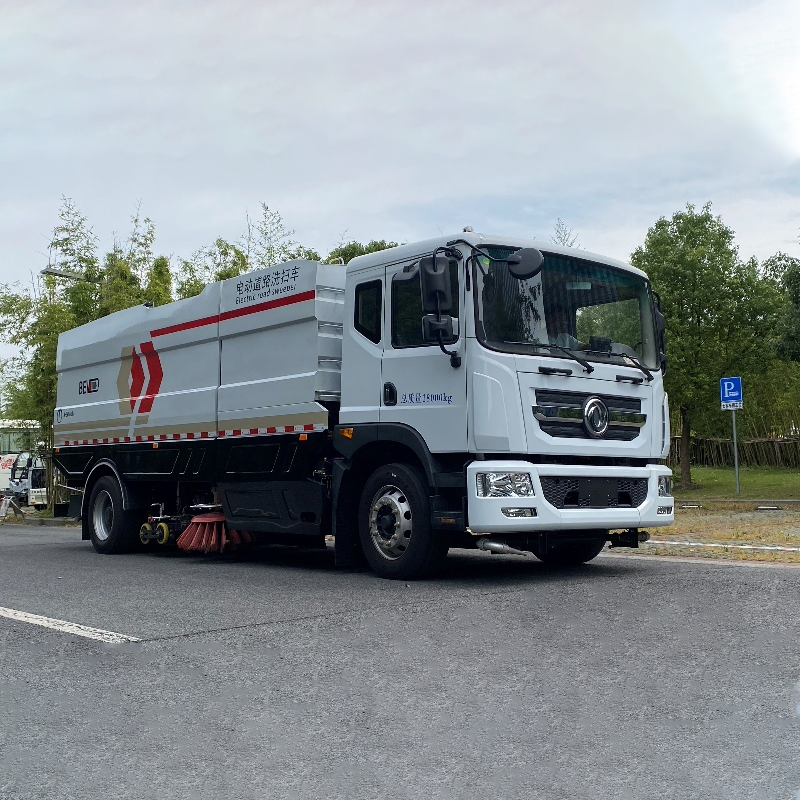

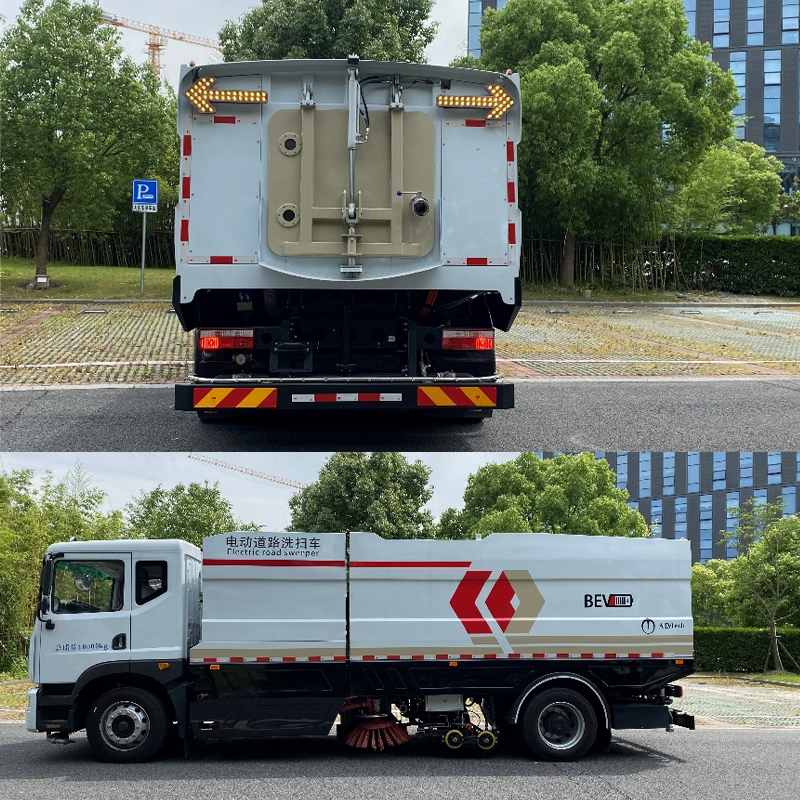

18T Pure Electric Cleaning Road Dust Vehicle

Function Description

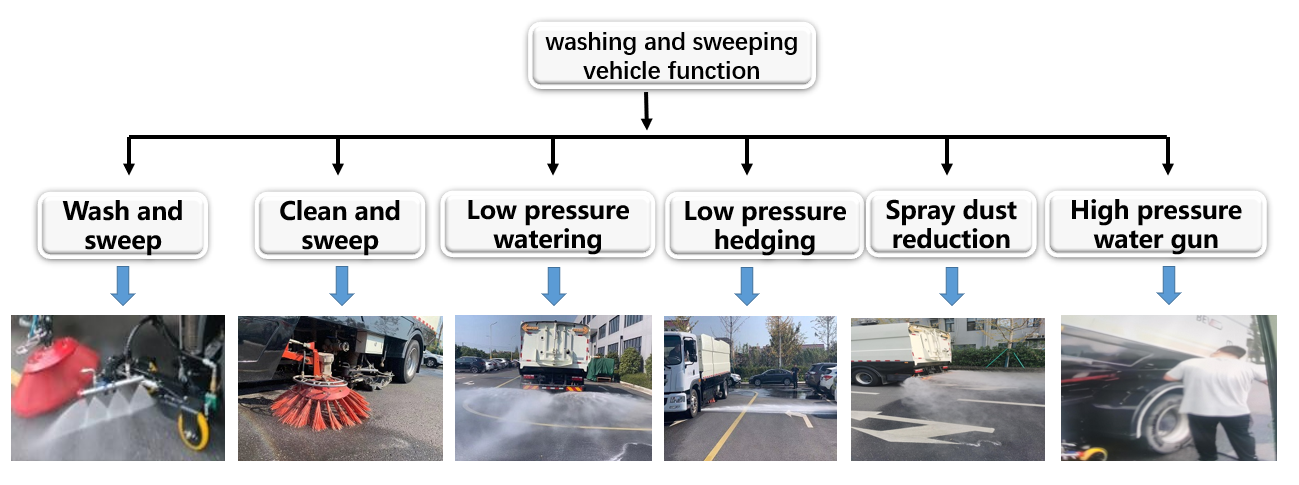

The cleaning vehicle has the functions of road cleaning, cleaning, spray dust reduction and low-pressure watering. Use the washing and sweeping function to wash and sweep roads in a large area at night, and use the cleaning function to clean roads during the day. At the same time, spray water or spray to reduce dust and increase air humidity. It can effectively improve the utilization rate of vehicles and reduce the purchase cost of vehicles

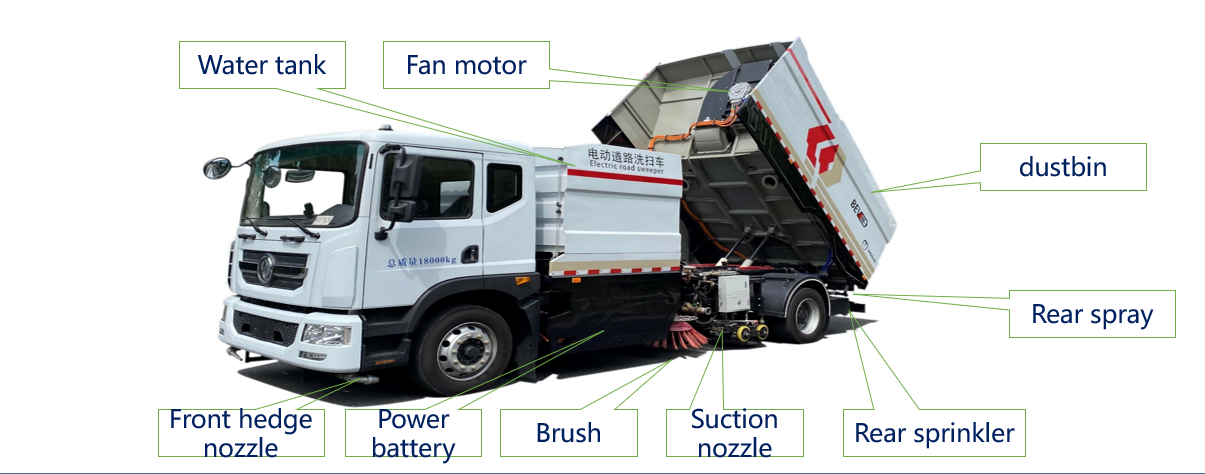

Structural Composition

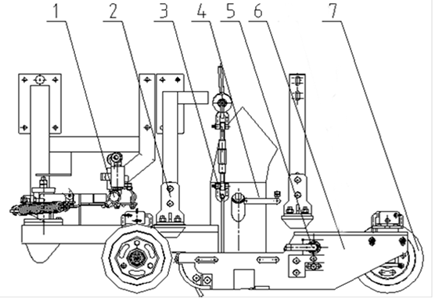

Suction Nozzle

• Side spray bar
• Limit mechanism
• lifting mechanism
• Steel wire soft straw
• Main spray bar
• Suction nozzle body
• Traveling wheel

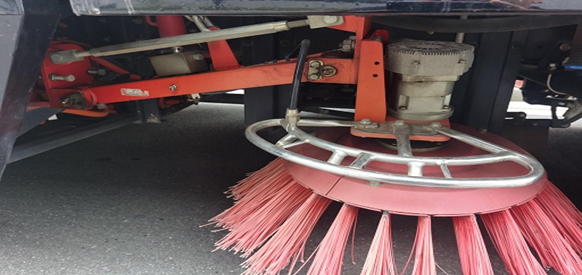

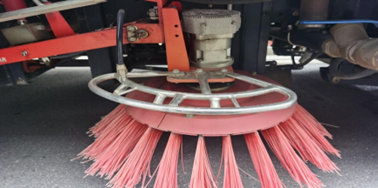

Sweep The Plate

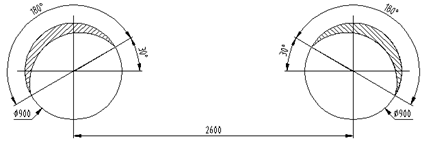

• The technical structure of "two vertical sweeps in the middle + high-pressure spray bar in the middle + high-pressure side spray bar in the middle" is adopted;
• The spray bar on the left and right high-pressure sides and the spray bar of the suction nozzle form a "V" arrangement, which has a large impact of water flow and can efficiently collect sewage;
• Casters adopt imported bearings, with long service life, and the height of suction nozzle: about 5 ~ 8mm;
• After CFD flow field analysis, the suction nozzle is equipped with an air supply port in the middle, which can effectively improve the garbage suction efficiency;
• The brush adopts a single oil cylinder structure, which has the function of collision avoidance and avoidance;
• The ground contact pressure of the brush is adaptively adjusted by the spring and the cylinder.

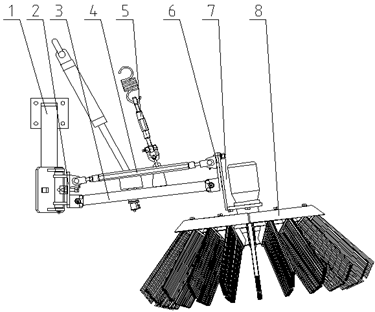

Specifition：

1. Mounting Bracket

2. Shaft Seat

3. Towing Link

4. Tilt Forward Lever

5. Adaptive Mechanism

6. Connecting Seat

7. Motor Base

8. Sweep The Plate

Valve, Pump

• The high-pressure water circuit adopts the mode of electric control and air control valve group to control the switch of high-pressure ball valve;
• The high-pressure waterway system is equipped with double protection of safety valve and overflow valve (pressure regulating valve);
• The central control valve group is equipped with a pressure gauge to monitor the water pressure;
• A fine filter is set in front of the high-pressure water pump to prevent impurities in the water from entering the high-pressure water pump;

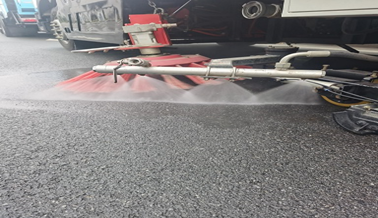

• The domestic mainstream "middle mounted high-pressure water spray bar + middle mounted high-pressure side spray bar" centralized operation device is used for pavement flushing;
• The rear spray system has a large amount of water and a constant flow, and the garbage can is equipped with a self-cleaning device

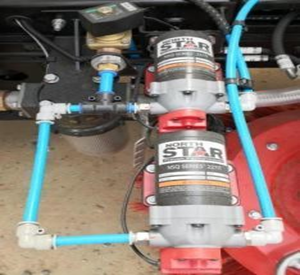

• The water spraying and dust reduction system is powered by the diaphragm pump to realize the spray of the left sweeping disc, the spray of the right sweeping disc and the spray of the suction tube of the suction cup, and the on / off of the spray can be realized through the water cut-off valve on each pipeline.

Generally, it is used in the sweeping mode, which can effectively reduce the dust raised in the sweeping operation and improve the operation efficiency.
