18T Pure Electric Road Cleaning Sweeper Truck For Sale

★ ★ ★
18T pure electric Road Sweeper Truck
Urban Sweeper
Road Sweeper Truck

18T Pure Electric Road Cleaning Sweeper Truck For Sale

The XML5180TXSJEVP0 pure electric washing and sweeping vehicle adopts the Dongfeng eq1181dacev pure electric class II chassis, and the upper assembly is composed of hub motor, fan, subframe, high-pressure water pump, low-pressure water pump, box, sweeping device, hydraulic system, electric control system, air system, etc; It mainly has many functions, such as road cleaning, road cleaning, kerb cleaning, kerb and kerbstone facade cleaning, spray dust reduction and so on. It is suitable for mechanized cleaning, sweeping, spray dust reduction and cleaning operations in urban roads, yards, wharves, enterprise factories, squares and other areas.

  • Shipping :

    Support Sea Freight
  • Customization :

    Customized Logo,Customized Packaging
  • Delivery Time :

    By Product
  • Warranty :

    By Product

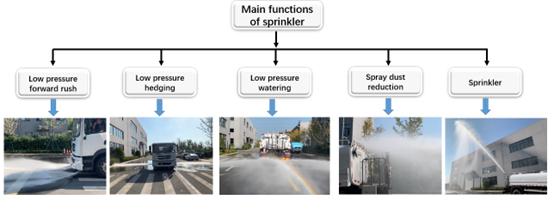

Function Description

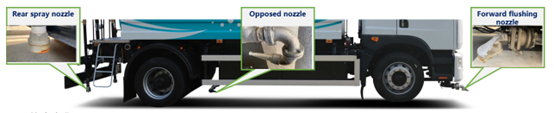

Forward Flushing Nozzle

Wash the front two sides of the vehicle. The universal duckbill nozzle can be adjusted at any angle to wash the ground. The effective working width is ≥ 8m.

Opposed Nozzle

Spray water to both sides in the middle of the vehicle. The flow is large, the water pressure is high and concentrated, and there is a strong washing operation for stubborn stains. The effective operation width is ≥ 24m, which can meet the operation requirements of 6 lanes.

Watering Operation

Watering operation shall be carried out on both sides behind the vehicle. The operation range is large and uniform, which plays the role of dedusting and cooling. The effective operation width is ≥ 16m.

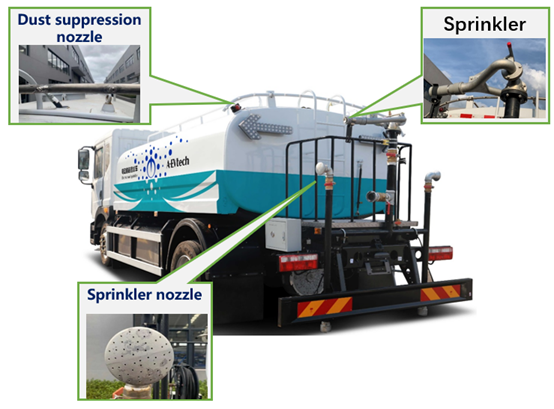

Dust Suppression Nozzle

The rear spray adopts 15 stainless steel wide-angle nozzles, with large flow and good atomization effect. It can spray to reduce dust, adjust air humidity and improve air quality.

Sprinkler

The vehicle adopts stainless steel water cannon with large flow and long range. It can spray heavy rain, light rain, fog and other effects through rotating the water cannon nozzle, and its maximum range is ≥ 38m.

Sprinkler Nozzle

It is mainly used for irrigation of green belts on both sides of the road.

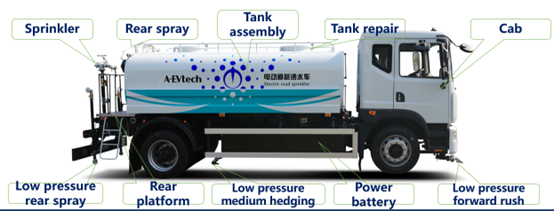

Structural Composition

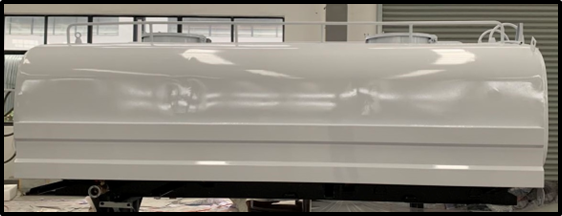

Structure Composition - Clean Water Tank

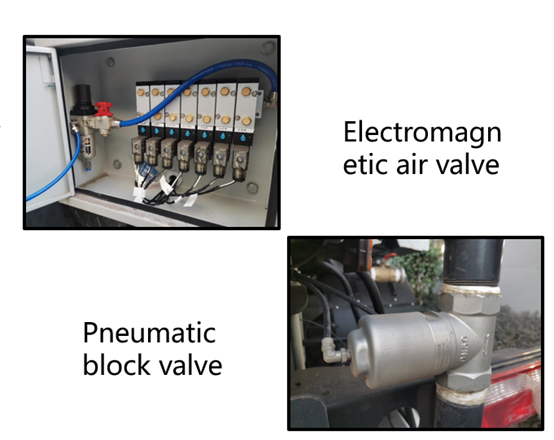

Upper Gas Circuit

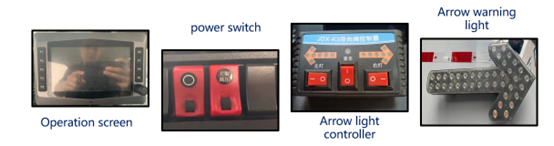

Upper Circuit

Basic Parameters

Vehicle Size (MM)

7610,8490×2500×2900

Maximum Climbing Gradient

18%

Maximum Total Mass /Curb Weight (KG)

18000/8585,9050

Minimum Turning Diameter (M)

19.5

Maximum Speed (KM/H)

80

Driving Range (KM)

350 (Isokinetic Method)

Power Configuration

Chassis Model

EQ1181DACEV

Peak power / speed torque of drive motor

200KW/3300RPM/2400NM

Power Battery

CATL lithium iron phosphate /255.48KWH

controller

Heavy Truck Controller/Hub Motor Controller

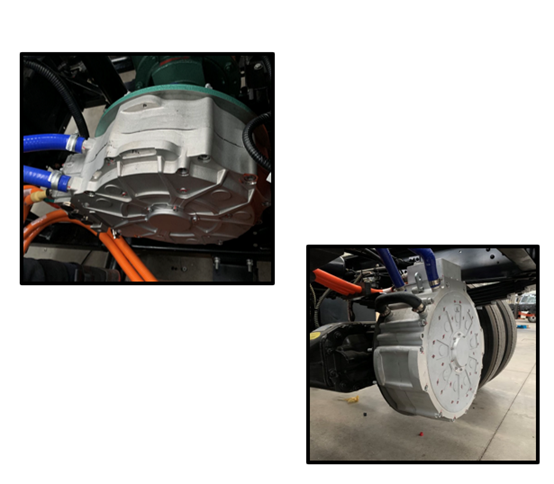

Drive Motor

Hub Permanent Magnet Synchronous Motor/TZ430XS200ICS200K

Steering System

Hydraulic Power Steering/Recirculating Ball Steering Gear

Chassis Configuration

Axle/Suspension System

Front And Rear Rigid Axles/Rear Wheel Drive/Direct Drive; Front And Rear Leaf Springs 8/10+7/Hydraulic Cylinder Vibration Reduction

Air Conditioning Heating System

Air Conditioner

Braking System

Dual Circuit Hydraulic Brake/Hydraulic Power Boost /Spring Energy Storage Parking Brake/Automatic Brake Clearance Adjustment /Abs

Tyre

295/80R22.5 18PR

Electrical Equipment Configuration

Monitoring System

Radio And Player+Reversing Image+Dash Cam Integrated Machine

other

Water level alarm, music horn, warning light

Cab

DongFeng Dorica D9 (Electric Lift Glass, Pneumatic Shock Absorber Driver's Chair, Etc.)





Upper Configuration

Water Tank Volume (M

9

Job Function

Front Duckbill+Middle Hedge+Rear Sprinkler+Rear Spray+Rear Sprinkler

Cleaning Width (M)

3.8

High pressure cleaning system

Spray Bar Nozzle Type Front High-Pressure Cleaning Device

Sprinkler Width (M)

14

Low Pressure Cleaning System

Low Pressure Flushing Spray Type/Disc Hub Permanent Magnet Synchronous Motor Direct Drive Water Pump

Flushing Width (M)

24

Operation Time (H)

10

Range Of Water Cannon (M)

38
