Fast Electric Vehicle AC Charger For Vehicle
The charger is reliable, flexible, fast and easy to operate, fully tested by authorities, suitable for public and residential parking lots, highway service areas, etc.
The charger is reliable, flexible, fast and easy to operate, fully tested by authorities, suitable for public and residential parking lots, highway service areas, etc.
Features:
Colored LCD touch screen user interface, displaying operation status, charging progress, IC card balance and other information
Complying with the relevant provisions of AC power metering
Supporting card swiping methods such as RFID and IC card with charging billing and control
Supporting third-party payment platform, bus card, mobile phone payment,etc.
Protecting and managing the integrity and security of data, allowing data query and replication
Available in communication with server control and management system, supporting Ethernet, 3G, 4G, etc.
Self-checking, fault alarm, over-current, overvoltage, under-voltage, leakage, anti-lightning, emergency stop, pull-out to power-off, auto power-off on abnormal charging, full auto-stop and other protections
Can be set to charge according to charging amount, power, time etc., or charge automatically
Advantages:
Complying with European standards, CE certified, compatible with OCPP
1.Allowing search, navigation, inquiry and reservation via mobile app and supporting various payment methods
2.Advanced SSE Cloud management platform with intelligent monitoring
1.Adopting flame-retarding materials, sturdy and well insulated shell
2.Key switch and swipe-card start, equipped with anti-theft holes
3.Various other protections to ensure the safety of personnel and vehicles
Excellent protection against harsh environmental conditions
Technical Data:
Input | Rated input voltage (V) | AC220+10%; AC380+20% |
Rated input frequency (Hz) | 50+10% | |
Output | Output voltage (V) | AC220+10%; AC380+20% |
Output current (A) | 16, 32, 63 | |
Output efficiency (%) | ≥98 | |
Insulation resistance (m) | ≥10 | |
Leakage current (mA) | <30 | |
Charging interfaces | 1 or 2 | |
Communication interface | Ethernet/3G/4G | |
Environmental | Operating temperature (°C) | -20 to 50 |
Storage temperature (°C) | -40 to 70 | |
Humidity (%) | 5- 95 (non-condensing) | |
Altitude (m) | ≤2000 | |
Pollution gradation | ≤Level II | |
Environment | No acid, alkaline or other corrosive gases or explosive gases in the ambient air, rain and vem | |
General | Protection level | IP54 |
Protections | Over-current, over-voltage, under-voltage, leakage, anti-lightning, emergency stop, pull-out to power-off, full auto-stop | |

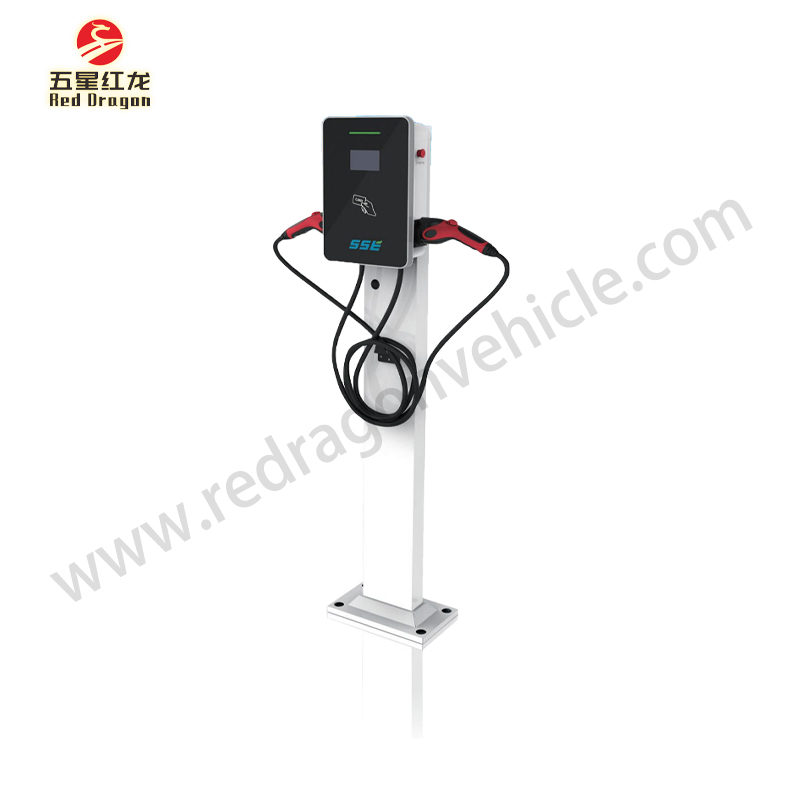

Installation | Wall-mounted; floor-mounted | |
Dimensions (WxDxH, mm) | 280x120x400 (wall-mounted);280x120x1500 (floor-mounted) | |
Standards | IEC/EN61851,NB/T33002,NB/T33008,GB/T18487,GB/T20234,GB/T28569 |
