Features:
Complying with European and other international standards, applicable to various vehicle brands and models
Tested by authorities and certified by TÜV CE

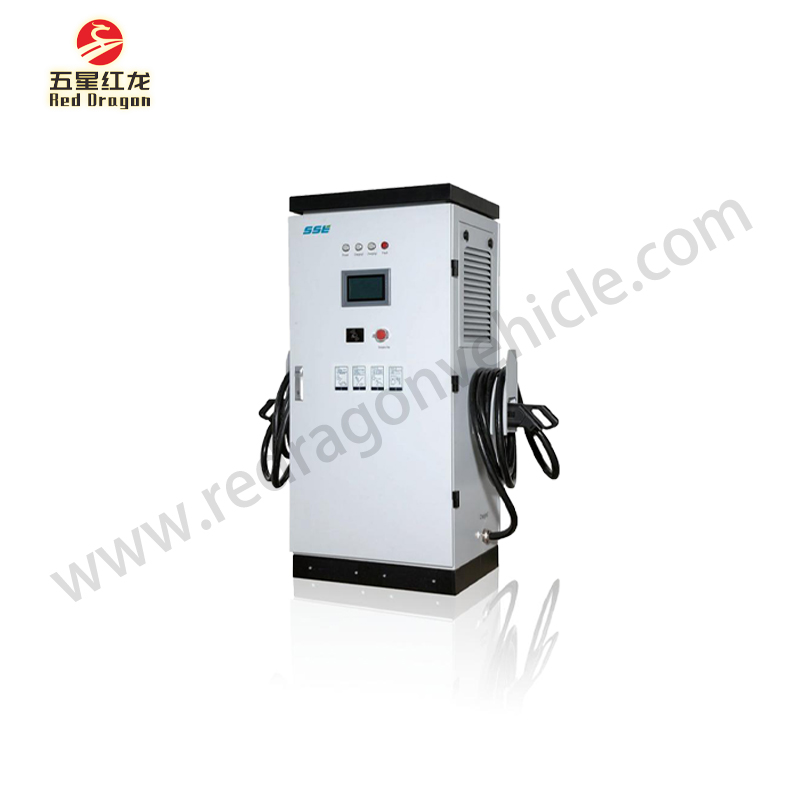

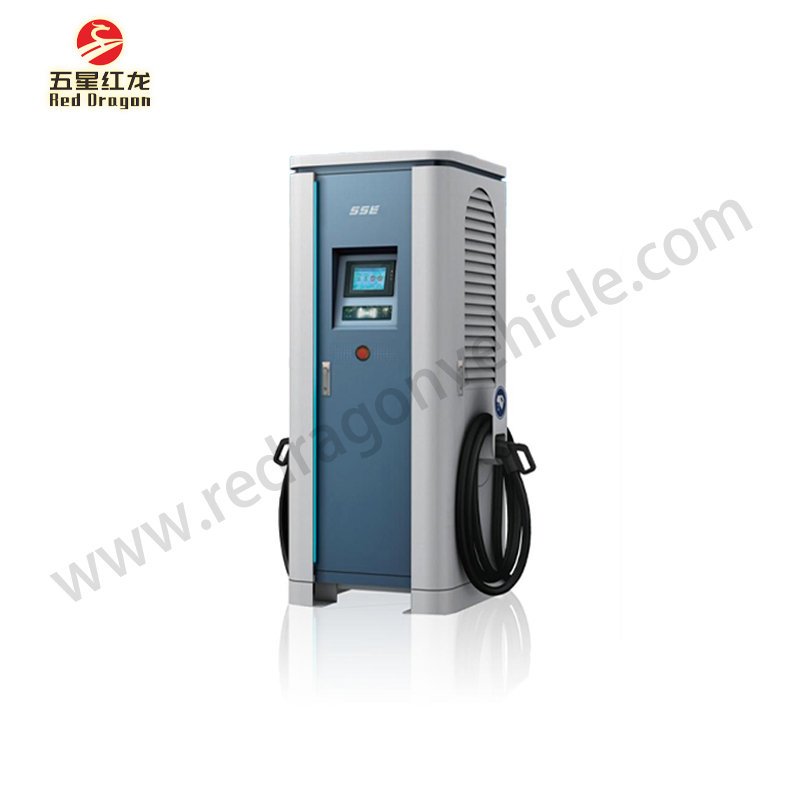

Two connectors offering full power output for single connector charging or smart power distribution for dual connector charging simultaneously
1.Intelligent charging process control
2.Intelligent power allocation, automatic current sharing and intelligent temperature control
Maximum efficiency of up to 96.5%, able to achieve the max output of constant power and current
1.Multiple protections such as auto power off on abnormal charging, overcharge protection, failure isolation, etc.
2.Effective heat dissipation, waterproof, dustproof, stable operation in a wide range of temperatures; resistant to rain, snow and other harsh environments
- Cloud Platform Management
"SSE Cloud" charging management platform available if required, supporting OCPP, intelligent monitoring, remote maintenance, and online upgrade via the background or app
Compatible with various charging service platforms as needed
Technical Data:
Input |
Input voltage (V) |
AC400±10% |
Max. input current (A) |
≤320 |
Input frequency (Hz) |
50/60 |
Power factor |
>0.99 |
Output |
DC output voltage (V) |
200 - 750 |
Rated output power (kW) |
30 - 150 |
Output current (A) |
0 - 200 |
Stabilized voltage precision (%) |
≤±0.5 |
Stabilized current precision (%) |
≤±1 |
Module current imbalance (%) |
≤5 |
Ripple factor (%) |
≤1 |
Efficiency (%) |
≥94 |
Communication protocol |
PLC |
User interface |
Touch screen |
Metering |
DC watt-hour meter to measure the output power |
General |
Communication interface |
Ethernet; 3G/4G (optional) |
Installation |
Integrated ground mounted |
Cooling |
Forced air cooled |
Dimensions (W×D×H, mm) |
789×600×1650 (30-60kW); 789×700×1900 (75-150kW) (in kind prevail) |
Protection level |
IP54 (outdoor); IP30 (indoor) |
Standards |
IEC/EN61851 |
Environmental |
Operating temperature (℃) |
-35 to 50 (normal output); 50 to 75 (derating output) |
Storage temperature (℃) |
-40 to 75 |
Humidity (%) |
5 - 95 |
Altitude (m) |
≤2000(full load output) |
Environment |
No strong vibration and shock, no strong electromagnetic interference, and induction intensity of external magnetic field ≤0.5mT |
Installation vertical obliquity (degree) |
≤5 |
