Detailed Configuration:
Transport type |
Lorrv-mounted crane |
Logistics type |
Cargo |
Distance(km) |
≤ 50 |
Road type |
Paved roads |
Drive |
4×2 |
6×4 |
8×4 |
Max weight(t) |
≤ 25 |
≤ 40 |
≤ 50 |
Max speed(km/h) |
90 |
90 |
90 |
Road type |
Paved roads |
Paved roads |
Paved roads |
Loaded speed(km/h) |
50 〜70 |
50 〜70 |
50 〜70 |
Vehicle model |
SX5185JSQDN561 |
SX5255JSQDR584 |
SX5315JSQDT456 |
Engine(km/h) |
WP10.300E22 |
WP10.340E22 |
WP10.380E22 |
Emission standard |
Euro II |
Euro II |
Euro II |
Displacement |
9.726L |
9.726L |
9.726L |
Rated Output |
220kW |
250kW |
280kW |
Max. torque |
1240N·m |
1400N·m |
1600N·m |
Transmission |
RTD-11509C+QH50 |
WP10.340E22 |
1OJSD18O+QH5O |
Clutch |
430 |
430 |
430 |
Frame |
850×300(8+5) |
850×300(8+5+8) |
850×300(8+5+8) |
Front axle |
MAN 7.5T |
MAN 7.5T |
MAN 7.5T |
Rear axle |
13T MAN 4.769 |
13T MAN 4.769 |
13T MAN 5.262 |
Tire |
12.00R20 |
12.00R20 |
12.00R20 |
Front Suspension |
Multi leaf springs |
Multi leaf springs |
Multi leaf springs |
Rear Suspension |
Multi leaf springs |
Multi leaf springs |
Multi leaf springs |
Fuel |
Diesel |
Diesel |
Diesel |
Capacity of the fuel tank |
400L |
400L |
400L |
Battery |
165 Ah |
165 Ah |
165 Ah |
Dimensions(L×W×H) |
10575×2495×3774 |
10575×2495×3774 |
11275×2495×3774 |
After the suspension |
2300 |
2900 |
2000 |
Wheelbase |
5600 |
5775+1400 |
2100+4575+1400 |
Max.gradeability(%) |
34 |
34 |
34 |
Cab |
Type |
F3000, low flat roof |
Equipments |
♦ Hydraulic main seat ♦ Four point hydraulic suspension cab ♦ Automatic air conditioning ♦ Electric window lifter ♦ Manual flip |
Optional |
• Airbag main seat |
Details:
![](/storage/uploads/images/202211/01/1667291338_M90eNPcwcj.jpg)

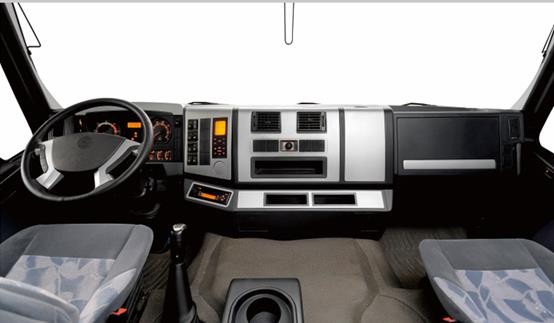

1,American VISTEON technology interior adopts 100% natural negative ion fiber fabric: new material sleeper berth can promote rest quality, Timed air conditioning external eyele and activated carbon air filter can inerease cab air quality.
![](/storage/uploads/images/202210/27/1666851733_OAhvKZ04vM.jpg)

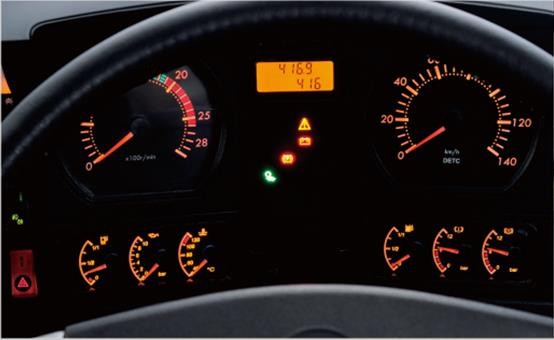

2,Sedan dashboard with new multi-functional VDO instruments includes controls AC, MP3 and radio.
![](/storage/uploads/images/202210/27/1666851742_r6NKS83DY0.jpg)

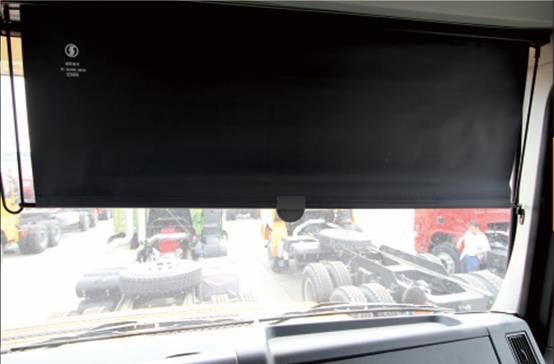

3,Driver and passenger side are both equipped with easy-operating and adjustable sunshades.
![](/storage/uploads/images/202210/27/1666851752_sd2qhCCAac.jpg)
4,Integrated structure floor mat is equipped with proteetive strips, great insulation and sealing, easy to clean and with good noise reduction properties.
![](/storage/uploads/images/202210/27/1666851767_pfgER1uc7m.jpg)

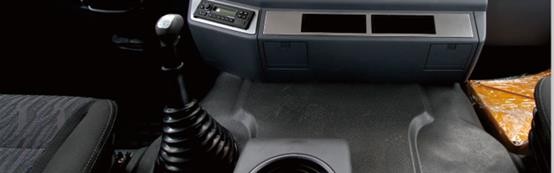

5, Telescopic shaft shift system is fixed shift lever base for increasing cab sealing properties and engine noise reduction.
![](/storage/uploads/images/202210/27/1666851779_SnD7t8KkBQ.jpg)

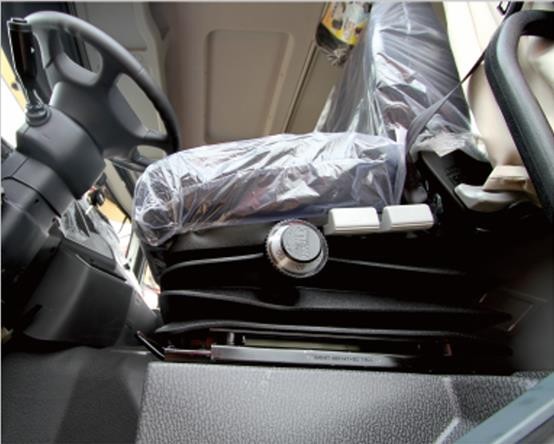

6, Four point air suspended auto adjusting seat design according to man-machine curve, providing its occupants with superior quality and comfort , The seat is effective in reducing driver fatigue which ensures the driver have a safe and comfortable journey.
![](/storage/uploads/images/202210/27/1666851819_B4nAJ8lRPX.jpg)

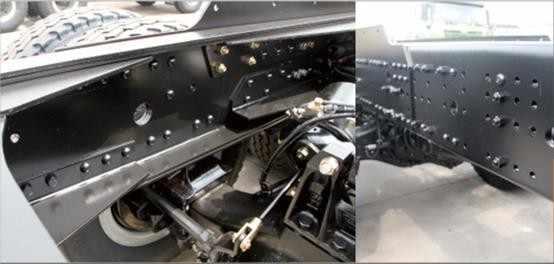

7, Advanced SIS suspension system is light weight maintenance free and with good load balance . New type steel plate spring suspension is equipped with high quality shock absorber and front &rear axle stabilizer bar, The new type of balanced suspension allows better load capacity and durability.
