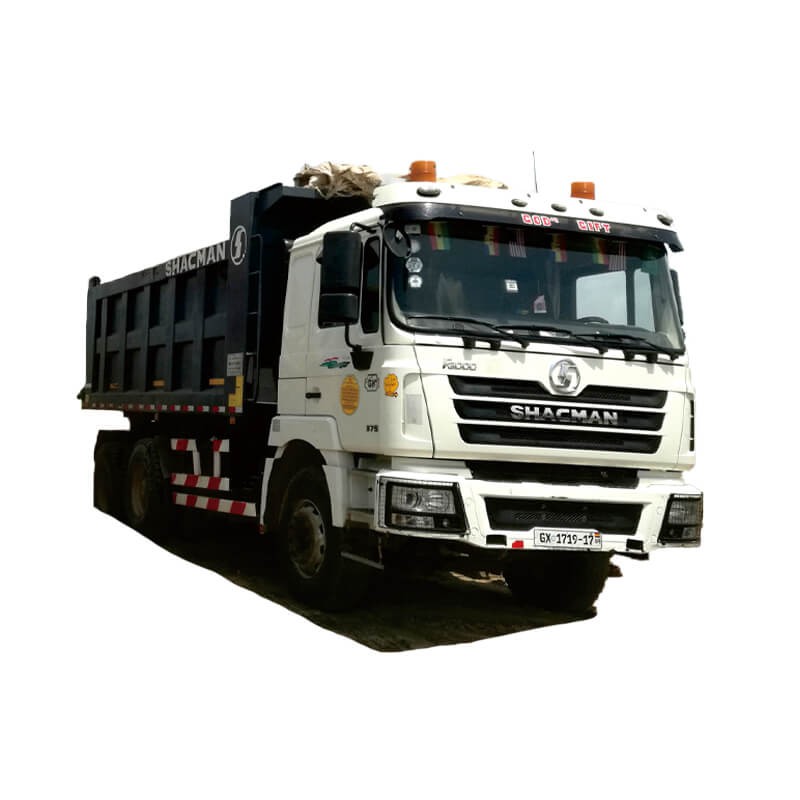

A dump truck, known also as a dumping truck, dump trailer, dumper trailer, dump lorry or dumper lorry or a dumper for short, is used for transporting materials for construction as well as coal.
Shipping :
Support Sea FreifgtCustomization :
Customized Logo, Customized PackagingDelivery Time :
By ProductWarranty :
By Product
Parameter Configuration：
| Transport type | Mining engineering | Highway transport | Full drive dump truck | ||||||||
| Logistics type | Ore / sand/ gravel / coal | Ore / sand/ gravel / coal | Ore /sand / gravel / coal | ||||||||
| Distance(km) | ≤200 | ≤200 | ≤200 | ||||||||
| Road type | Offroad | Paved roads | Offroad | ||||||||
| Drive | 6x4 | 6x4 | 6x4 | 8x4 | 8x4 | 8x4 | 8x4 | 8x4 | 8x4 | 4x4 | 6x6 |
| Max weight(t) | ≤50 | ≤50 | ≤50 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤25 | ≤50 |
| Max speed(km/h) | 75 | 75 | 80 | 85 | 85 | 80 | 80 | 80 | 80 | 85 | 85 |
| Loadedspeed(km/h) | 40~60 | 40~60 | 40~60 | 40~60 | 40~60 | 40~60 | 40~60 | 40~60 | 40~60 | 40~60 | 40~60 |
| Vehicle model | SX3255DR354 | SX3255DT384 | SX3255DT384C | SX3315DR366 | SX3315DT366 | SX3315DV366 | SX3316DT366C | SX3315DT366 | SX3315DT366C | SX3165DR442 | SX3255DT385C |
| Engine | WP10.340E22 | WP10.380E22 | ISM11E4_ 385 | WP10.340E22 | WP10.380E22 | WP12.430E201 | ISM11E4_385 | WP10.380E22 | ISM11E4_385 | WP10.340E22 | ISME385 30 |
| Emission standard | Euro II | Euro II | Euro IV | 9.726L | Euro II | Euro II | Euro III | 9Euro II | Euro IV | Euro II | Euro III |
| Displacement | 9.726L | 11. 596L | 10.8L | 9.726L | 9.726L | 11.596L | 10.8L | 9.726L | 10.8L | 9.726L | 10.8L |
| Rated Output | 250kW | 280kW | 283kW | 250kW | 280kW | 316kW | 309kW | 280kW | 283kW | 250kW | 283kW |
| Max. Torque | 1400N.m | 1600N.m | 1835N.m | 1400N.m | 1600N.m | 2000N.m | 2000N.m | 1600N.m | 1600N.m | 1600N.m | 1600N.m |
| Transmission | 10JSD180+QH50 | 10JSD180+QH50 | 10JSD180+QH50 | 10JSD180+QH50 | 10JSD180+QH50 |
12JSD200TB+QH50 |
10JSD180+QH50 | 10JSD180+QH50 | 10JSD180+QH50 | 10JSD180+QH50 | 12JSD180T+QH50 |
| Clutch | 430 | 430 | 430 | 430 | 430 | 430 | 430 | 430 | 430 | 430 | 430850x300(8+7) |
| Frame | 850x300(8+7) | 850*300(8+7) | 850*300(8+7) | 850x300(8+7) | 850x300(8+7) | 850x300(8+7) | 850x300(8+7) | 850x320(8+7+8) | 850x320(8+7+8) | 850x300(8+7) | 850x300(8+7) |
| Front axle | MAN 9.5T | MAN 9.5T | MAN 9.5T | MAN 9.5T | MAN9.5T | MAN9.5T | MAN9.5T | MAN9.5T | MAN9.5T | MAN 9T | MAN 9T |
| Rear axle | 16T MAN 5.92 | 16T MAN 5.92 | 16T MAN 5.262 | 16T MAN 5.262 | I6TMAN 5.262 | 16T MAN 4.769 | 16T MAN 4.769 | 16T MAN 5.262 | 16T MAN 4.769 | 16TMA N 5.92 | 16T MAN 5.262 |
| Tire | 12.00R20 | 12.00R20 | 12.00R20 | 12.00R20 | 12.00R20 | 12.00R20 | 12.00R20 | 12.00R20 | 12.00R20 | 12.00R20 | 12.00R20 |
| Front Suspension | Multi leaf springs | Multi leaf springs | Multi leaf springs |
Multi leaf springs |
Multi leaf springs | Multi leaf springs | Multi leaf springs | Multi leaf springs | Multi leaf springs | Multi leafsprings | Multi leaf springs |
| Rear Suspension | Multi leaf springs | Multi leaf springs | Multi leaf springs | Multi leaf springs | Multi leaf springs | Multi leaf springs | Multi leaf springs | Multi leaf springs | Multi leaf springs | Multi leafsprings | Multi leaf springs |
| Fuel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Capacity of the fuel tank | 300L | 400L | 400L | 400L | 400L | 400L | 400L | 400L | 400L | 400L | 400L |
| Battery | 165Ah | 165Ah | 180Ah | 165Ah | 165Ah | 165Ah | 180Ah | 165Ah | 180Ah | 165Ah | 180Ah |
| Dimensions(LxWxH) | 7950x2490x3270 | 7950x2490x3270 | 7950x2490x3270 | 9300x2490*3210 | 9300x2490x3210 | 9300*2490x3210 | 9300x2490x3210 | 9300x2490x3210 | 9300x2490x3210 | 6750x2490x3270 | 7950x2490x3270 |
| Trunk(LxWxH) | 5200x2300x1500 | 5600x2300x1500 | 5600x2300x1500 | 7400x2300x 1500 |
7400x2300x1500 |
7400x2300x1500 | 7400*2300x1500 | 7400x2300x1500 | 7400x2300x1500 | 4500x2300x1100 | 5600x2300x1100 |
| Wheel base | 3575+1400 | 3775+1400 | 3775+1400 | 1800+3575+1400 | 1800+3575+1400 | 1800+3575+1400 | 1800+3575+1400 | 1800+3575+1400 | 1800+3575+1400 | 4400 | 3775+1400 |
| Max.gradeability(%) | 30 | 30 | 30 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Type | F3000, mid-lengthened flat roof | ||||||||||
| Cab |
Equipment |
★Electric window lifter ★Hydraulic suspension of cab ★Hydraulic main seat ★Automatic air |
★Hydraulic main seat ★Four point hydraulic suspension cab ★Manual window lifter ★Manual fip |
||||||||
|
Optional |
★Air main seat ★Electric fip ★Four point air suspension cab ★Central locking |
★Air main seat ★Elctric flip ★Four point air suspension cab ★Automatic air conditioning ★Electric window lifter |
|||||||||
Product Details：
Full drive tractor，Bulk cement ，Bulk tank transport

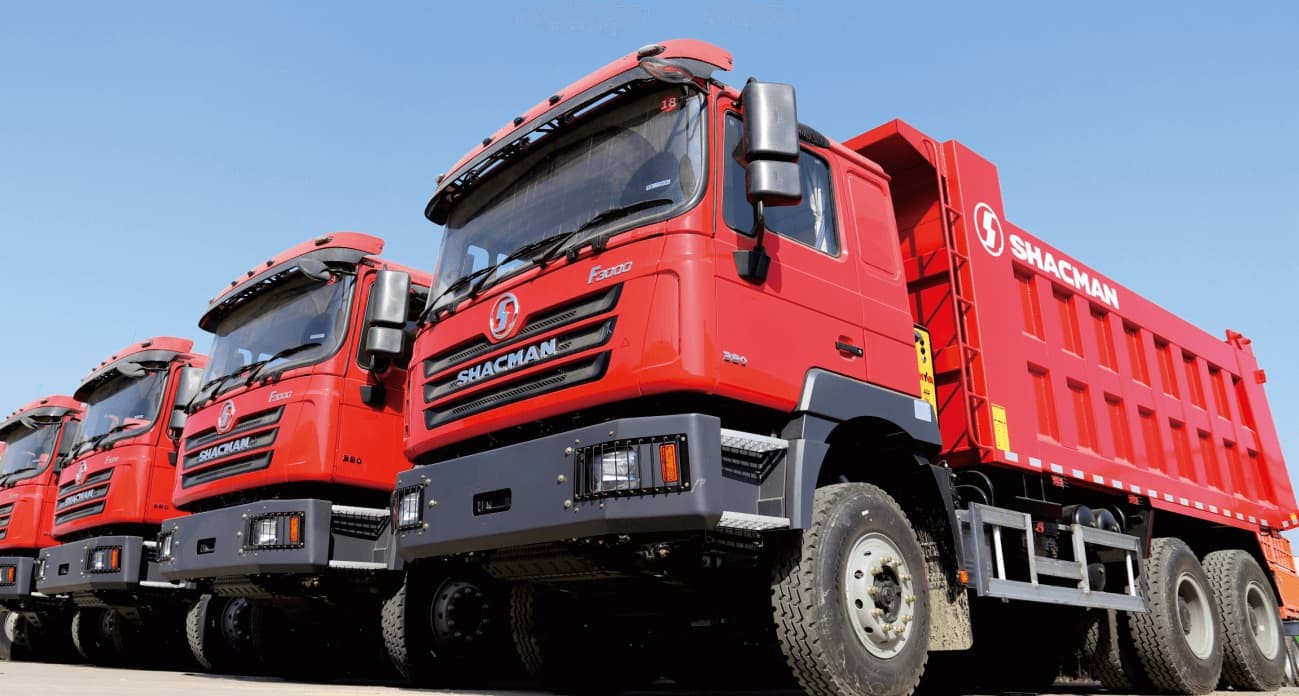

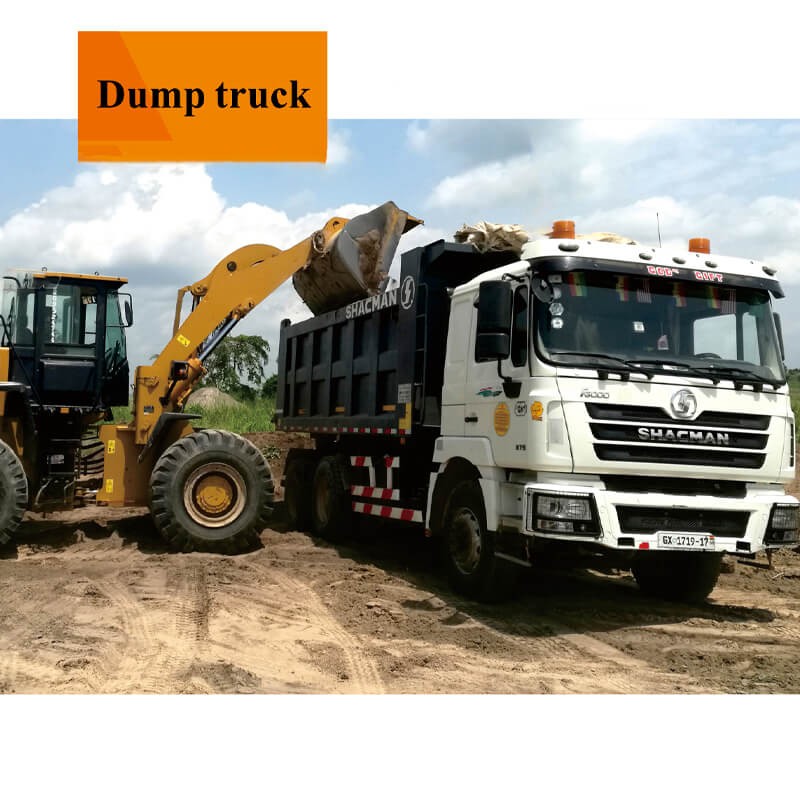

A dump truck, known also as a dumping truck, dump trailer, dumper trailer, dump lorry or dumper lorry or a dumper for short, is used for transporting materials for construction as well as coal.
All-new body design, advanced sound insulation technology and reinforced cab body structure, four-point air suspension system, double-layer sealed cab door and electronically controlled automatic climate control increase driving comfort.
All-new body design, advanced sound insulation technology and reinforced cab body structure, four-point air suspension system, double-layer sealed cab door and electronically controlled automatic climate control increase driving comfort.
A crane truck is a crane/telescopic crane on the chassis of a truck. Through a telescopic boom, the crane extends to 8 times its original length.
A truck or lorry is a motor vehicle designed to transport cargo, carry specialized payloads, or perform other utilitarian work. Trucks vary greatly in size, power, and configuration, but the vast majority feature body-on-frame construction, with a cabin that is independent of the payload portion of the vehicle.
A tank truck, gas truck, fuel truck, or tanker truck or tanker is a motor vehicle designed to carry liquids or gases on roads. The largest such vehicles are similar to railroad tank cars, which are also designed to carry liquid loads.
Browse a large selection of all mixer trucks from top manufacturers Popular models include MAN 9.5T, WP10.340E22+PTO, SX5255GJBDR384. Additional services available including financing, insurance and warranties on select mixer trucks.
