Feature:

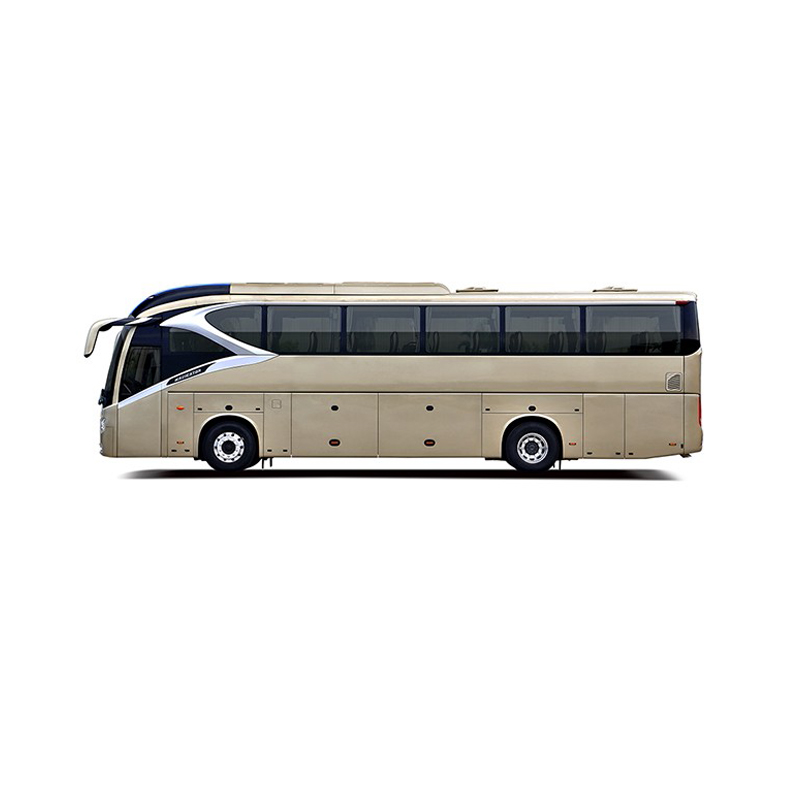

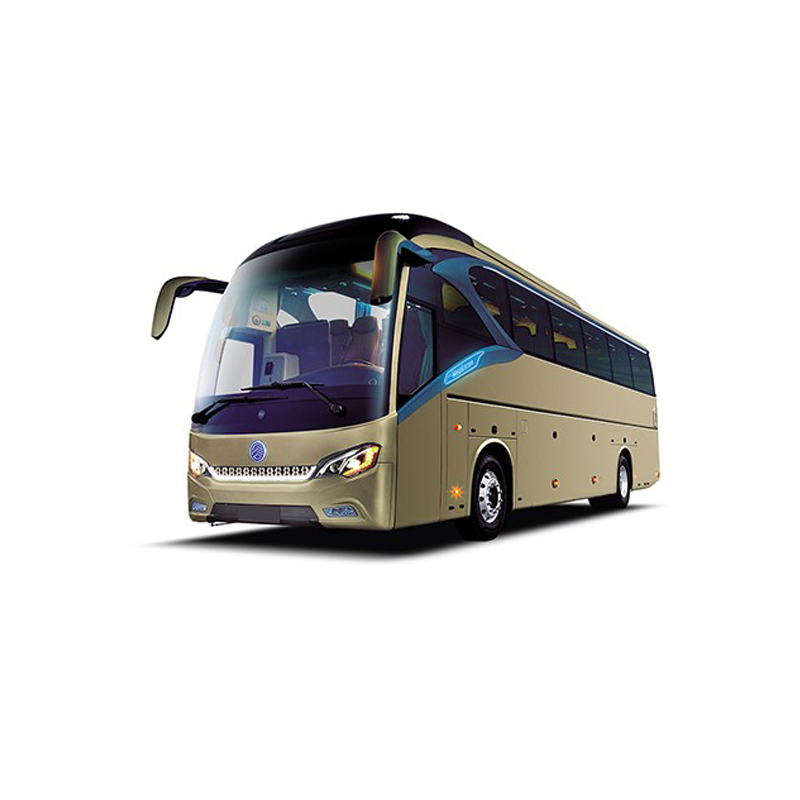

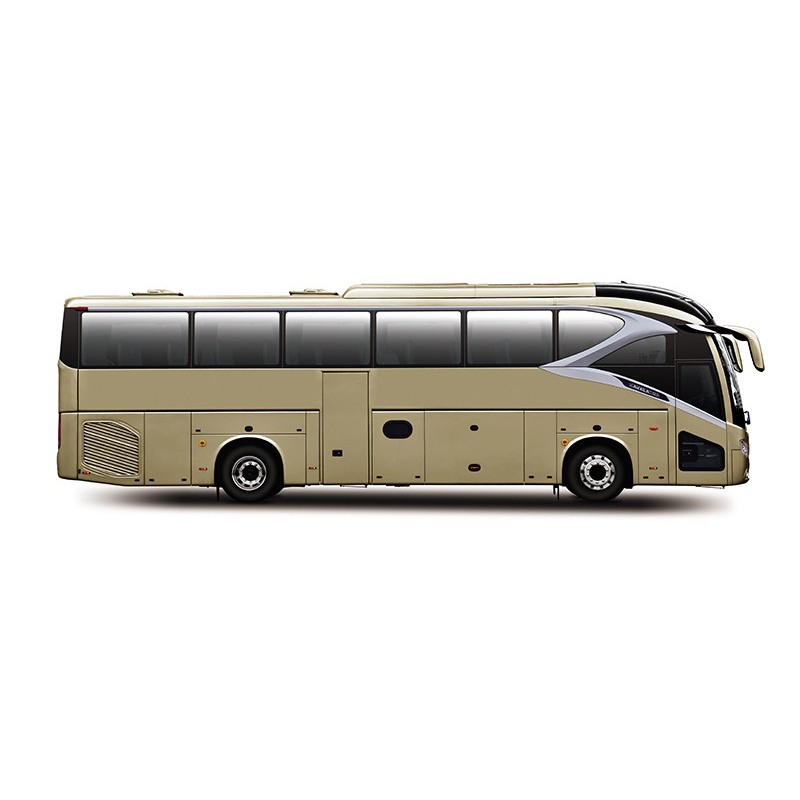

The flowing and delicate line of the body not only demonstrates the elegance but also takes the fuel-saving into consideration. Excellent complete coach drag coefficient of 0.548 makes it more perfect. LED lights are adopted for whole coach, the illuminance, low energy consumption and life span have reached the leading level. The design inspiration of the headlight comes from the sharp and smart eagle eyes. The dual light bands of the headlights and taillights add layering for the whole design.

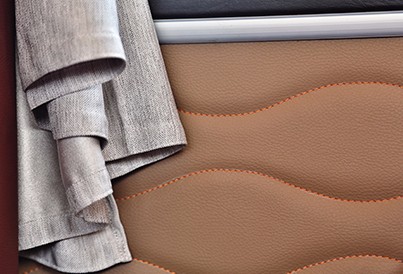

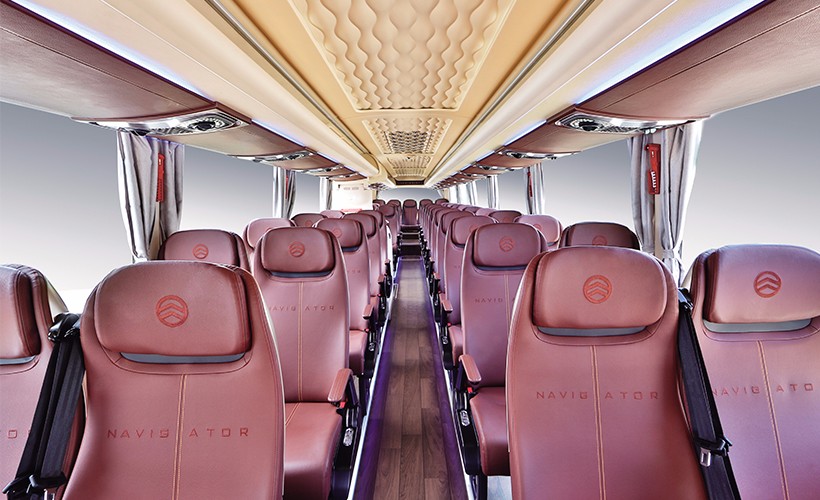

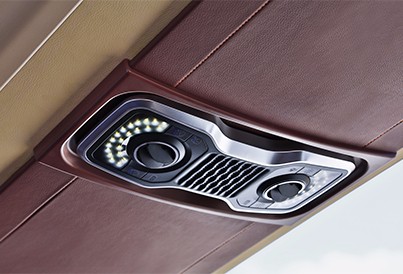

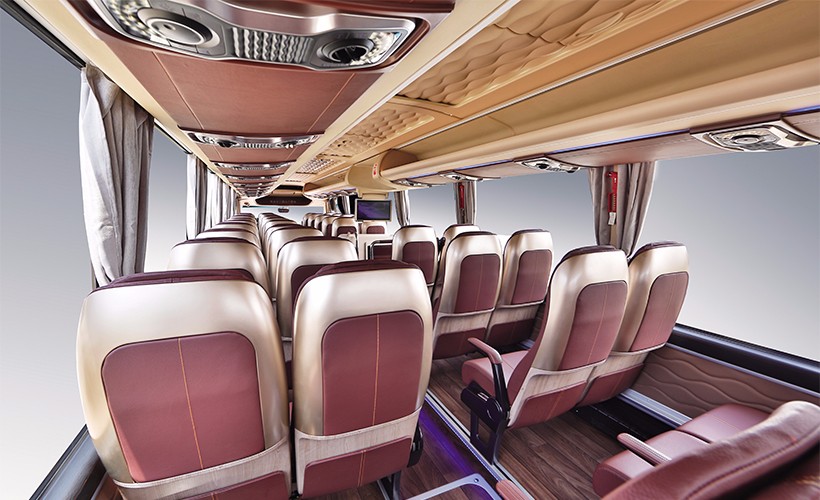

Passenger seat adopts the design of human ergonomics, with the better leather fabric, the headrest can be adjusted up or down so as to fully fit people’s sitting posture, this will provide a comfortable experience for the passengers. Moreover, the separate Auto Cooling-and-Heating A/C Systems appropriately distribute the air ventilation to make sure the temperature is comfortable inside the coach. There are separate Auto Cooling-and-Heating A/C systems for driver’s and passengers’ area, as well as separated A/C air vent upon every seat.

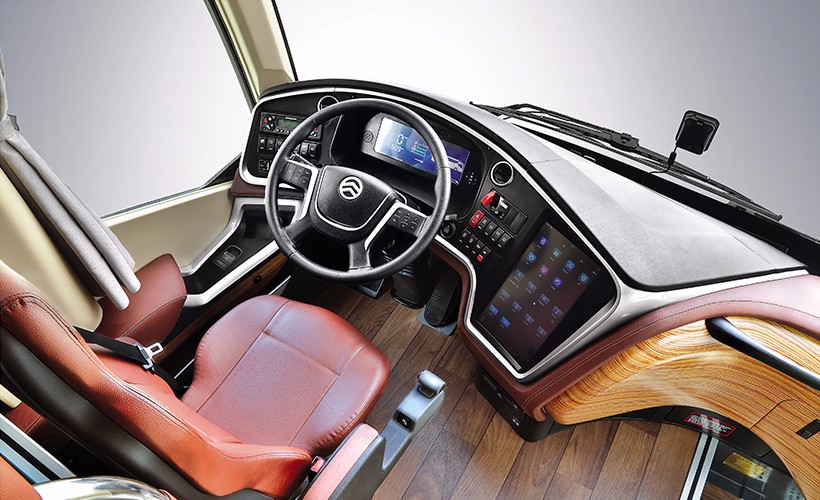

Rotatable driver seat is easily accessed by driver and it relieves driving fatigue with the functions of ventilation, massage, etc. Automatic start, ATM, electric parking brake, separate audio system and A/C system in driver’s area, all these create easy environment for driving and make the travel safer.
The safety, reliability, comfort and service convenience of Navigator’s chassis and dynamic system all reach the world first class, there are several optional plans for the dynamic system, and this model is aiming at the Asian and Chinese market, at the beginning of the development, we have considered the European standard and compatibility, and in the future, we would like to launch a model which is suitable for the European market.
Technical Specification
Dimension |
Length |
12M |
Width |
2.55M |
Height |
3.795M |
Seating Capacity |
45+1+1+central W.C. |
Inside Standing Height |
2020MM |
First Step Height |
380MM |
Luggage Compartment Capacity with WC |
9.5M3 |
Powertrain |
Engine |
Mercedes-Benz OM457 LA, 295 KW/401HP |
Torpue 2000 N.m.(1100 RPM) |
Euro V:SCR |
Transmission |
Mercedes-Benz GO 240-8 NewAMT, 8 gears+ hydraulic retarder |
Front Axle |
ZF RL 85 EC independent suspension |
Rear Axle |
Mercedes-Benz RO 440-13(speed ratio 3.583:1) |
Braking |
Disc braking |
Suspension |
Air suspension ECAS |
Braking System |
KNORR braking disc+ braking calipers +EBS+ ESC |
Steering |
ZF 8098 steering |
Fuel Tank+ Carbamide Tank |
400+40L |
Equipment |
Seat |
Grammer driver 45+1 |
Audio-visual |
222”TFT front display |

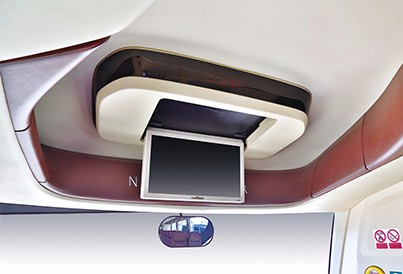

19”TFT central display |
15.6” central control touch panel (integrate entertainment audio & visual , monitor, rear-view mirror, navigation and bluetooth) |
VOD system |
driver Bluetooth power amplifier |
Safety |
Lane Departure Warning System (LDWS) |
Front Collision Warning System (FCWS) |
Tire Pressure Monitor System (TPMS) and Tire Emergency Safety Device (TESD) |
Other |

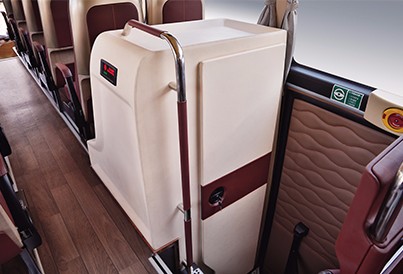

Central toilet |
Pneumatic out-swing doors(Front & Centre) |
Lighting |
LED Front headlamps |
LED lamps inside and outside |
A/C refrigerating capacity 36KW and heating capacity 43KW |
Insulating glass |
Multi-functional dashboard (MMI system multi-functional switch+ touch panel) |
ACTIA Multiplex system |
