Feature:
- The quest for the ultimate in detail

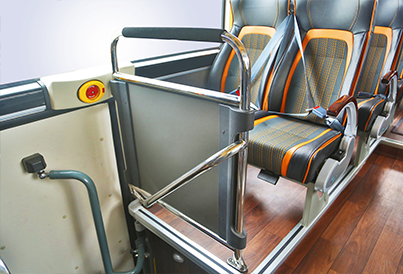

The latest CMF (Colour, Material and Finish) design concept from British craftsmen. The ergonomic seats are fully adapted to the body's seating position, bringing you a more comfortable riding experience. NVH technology is used throughout the vehicle, based on sound-absorbing and sound-insulating structural design, and a large number of special sound-insulating and noise-reducing materials are applied to make the interior of the vehicle quiet and comfortable for your journey.
- Aesthetics and design craftsmanship

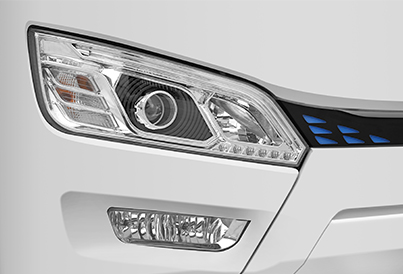

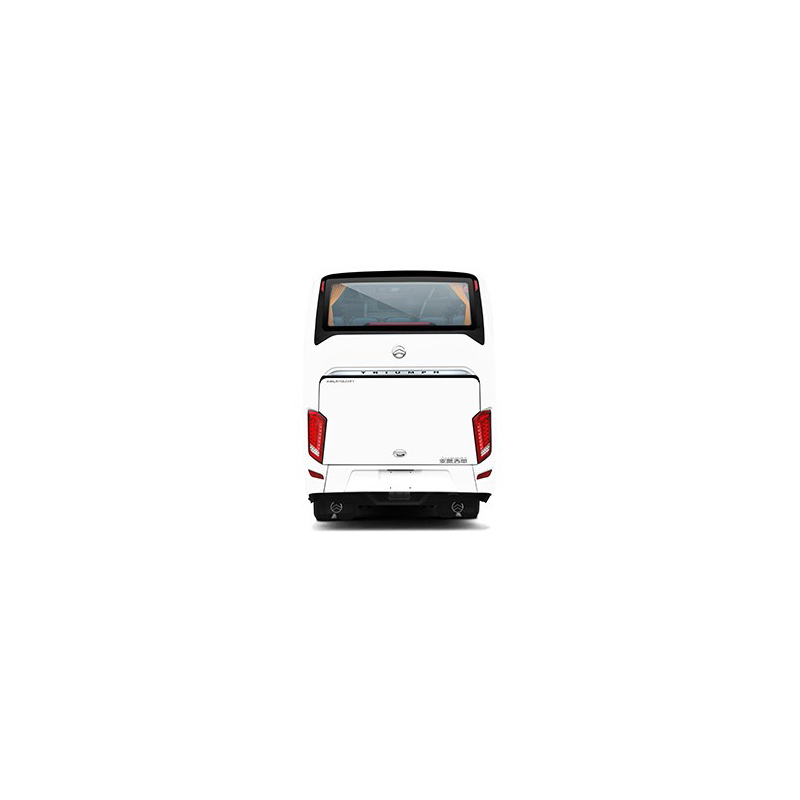

The exterior design features a family-style front with luminous trim, set off by radiant and sophisticated integrated LED headlamps. In addition, the eye-catching LED taillights are full of dynamic elements. The seamless combination of European aesthetics and craftsmanship fully embodies the luxurious, elegant and noble temperament of the new Triumph.

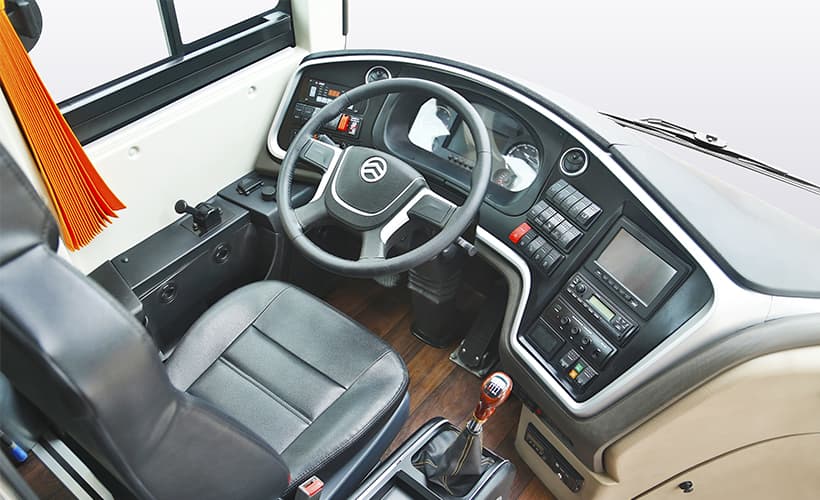

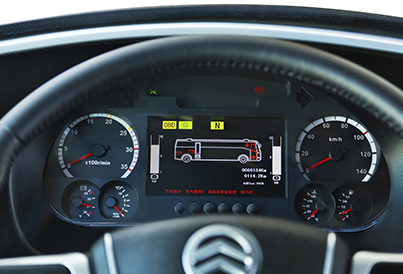

The driver's field of vision has been designed using the most demanding international standards to give you a wider field of vision. It is worth mentioning that the vehicle still has the same instrumentation outline as the high-end luxury bus "Pilot" from Golden Dragon, with more rational functional areas. In addition, the CAN bus 7" digital LCD instrumentation is used for visual monitoring of the operating status of the electrical equipment. The ergonomic design puts the driver one step ahead in terms of ride comfort, manoeuvrability and safety.

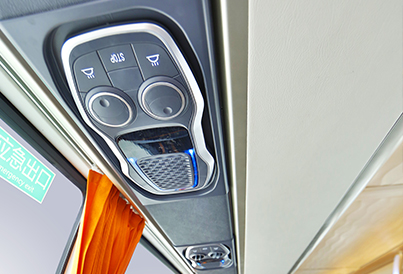

The new textured centre roof panel, multi-layered air duct structure, sports car shaped air vents, nail-free interior and soft-clad stitching show the beauty of the integrated craftsmanship, greatly enhancing the luxury of the whole vehicle.
The NVH technology is applied to the entire vehicle, with a large number of sound-absorbing and noise-reducing special materials applied on the basis of the sound-absorbing and sound-insulating structure design, together with the low-noise thin air conditioner, creating a quiet riding environment and making the journey more relaxing for passengers.
Technical Specification:
Dimension(mm) |
10990×2550×3695 |
Wheelbase (mm) |
5550 |
Angle of Approach / Departure(°) |
9°/9° |
Fornt / Rear Overhang |
2250/3190 |
Curb Weight(kg) |
16400 |
|
WP7.300E61/YCK08 310-60/YCK08 300N-60 |
Transmission |
6 MT |
Suspension System |
Air Suspension (Options: Front Independent Suspension) |
Front/Rear Axle |
6.5T/13T |
Brake System |
Front Disc (Options: Drum Type)/Rear Drum Type (Options: Disc Type) with Retarder |
Door Arrangement |
Front Door (Options: Central Door) |
Rated Seat Capacity |
Up to 53 |
