Feature:
- AUTONOMOUS DRIVING IS THE FUTURE
From 2014, Golden Dragon start the exploration of driverless bus. As the new outcome of technology revolution, the autonomous driving bus has developed beyond the boundary of vehicle industry, involving vehicle manufacture, network communication, intelligence traffic, positioning, internet application

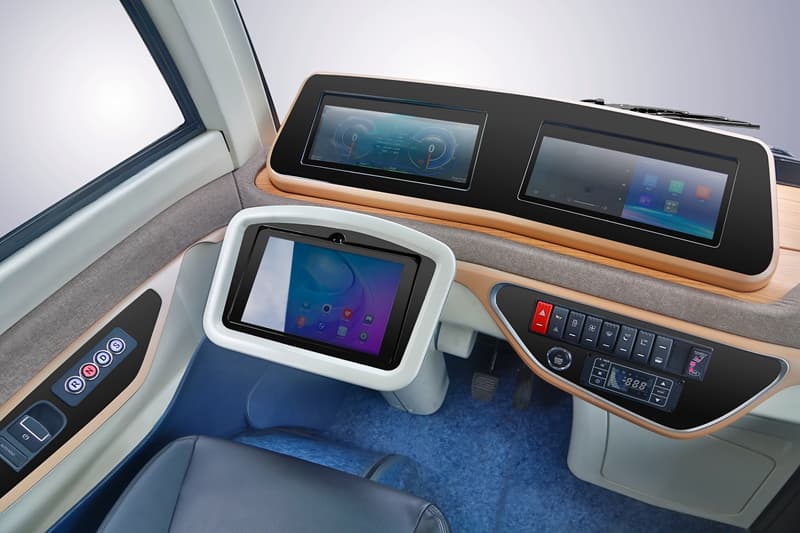

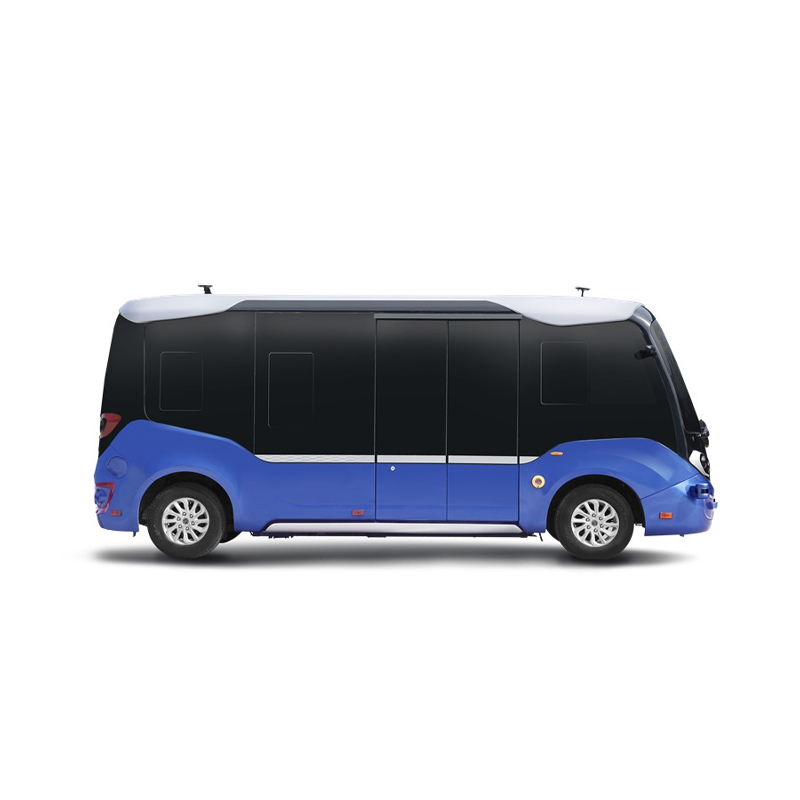

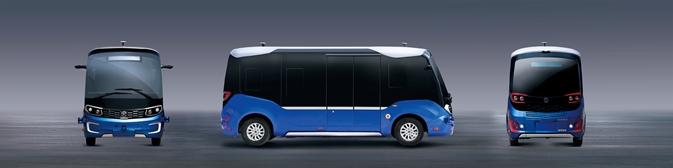

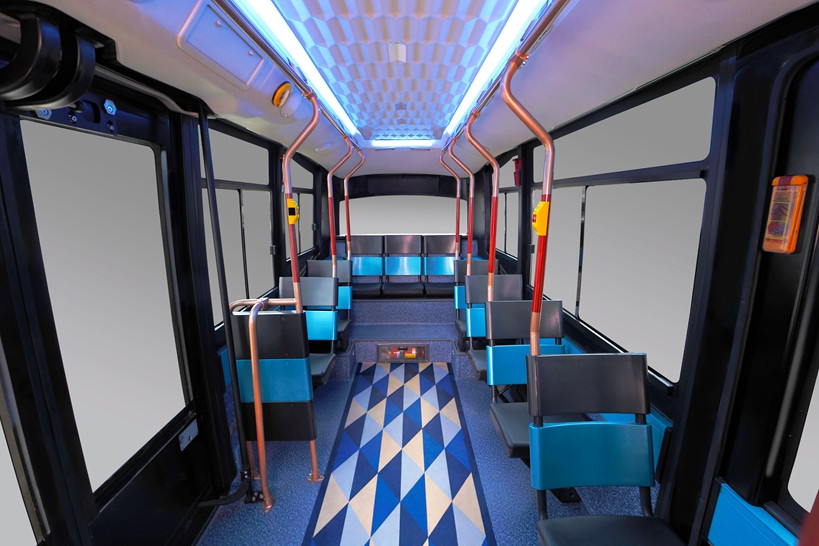

With a length of 6 meter and streamlined body, ASTAR possesses a lower drag coefficient. Measuring 2.56 meter in height and 1.1-meter outer swing passenger door, it offers one-step access for passengers and ensures quick boarding and alighting. The large panoramic windows bring a broad view to passengers inside. With 10 seats in ASTAR, the maximum passenger capacity can be 24, this will easily handle the passenger flow in the rush hour. In the interior, two 32-inch LED display are used to provide passengers with driving information, safety alerts and entertainment services.
- AUTONOMOUS DRIVING PLATFORM

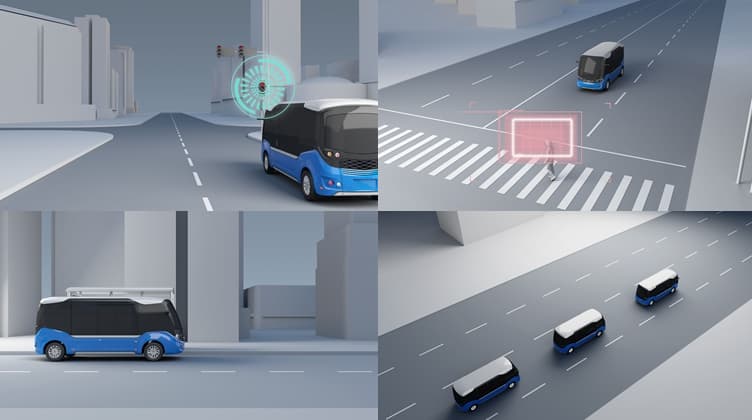

On ASTAR, its sensor system consists of Lidar, millimeter wave radar, GPS antenna and high dynamic range (HDR) camera. Those sensors help the bus gain a thorough understanding of road conditions and help the vehicle detect pedestrians and other vehicles.can realize the autonomous driving and perform a number of complex driving tasks, such as lane changing, avoid pedestrians, dynamic obstacle avoidance (DOA) ,overtake, site parking, traffic light recognition, speed limit sign recognition ,etc.
- SHEER DESIGN FOR AUTONOMOUS DRIVING
You have two driving mode in ASTAR, one is the autonomous driving mode and another is the manual operation. When a driver interacts with the steering wheel, the autonomous driving mode will instantly change into manual mode. More importantly, with higher maneuverability and higher agility, it is an ideal choice for the last-kilometer transportation in urban areas.
Technical Specification:
Dimension(mm) |
6045X2020X2560 |
Wheelbase (mm) |
3820 |
Angle of Approach / Departure(°) |
13/19 |
Fornt / Rear Overhang |
1220/1005 |
Curb Weight(kg) |
3090 |
|
Electric Motor |
Door Arrangement |
1 |
Max.Passenger Capacity |
24 |
Rated Seat Capacity |
9 |
Engine Model |
TZ258XS-320D9C1 |
Gross Weight (KG) |
5440 |
Max Torque(N·M) |
90KW |
Max Power |
320N·M |
Tire |
215/75R16LT |
ABS |
Equipped |
