Bus Specification |
Overall Length(mm) |
10500 |
Overall Width(mm) |
2480 |
Overall Height(mm) |
3360 |
Body Inside Height(mm) |
1900 |
Wheel Base(mm) |
5100 |
Front/Rear Overhang(mm) |
2200/3200 |
Approach/Departure(°) |
2022/12/9 |
First Step Height(mm) |
430 |
Max G.V.W.(kg) |
14500 |
Seats Capacity(person) |
32+1 |
Max. Speed(km/h) |
100 |
Steering Wheel Position |
RHD |
Engine |
Engine Model |
C230 20 |
Manufacturer |
DCEC |
Engine Position |
Front/Diesel |
Engine Type |
6 Cylinders in Line, water cooling,turbocharged,inter-cooling, direct-injecting |
Max Power(kw) |
170 |
Max Torque(N.m) |
830 |
Displacement(ml) |
8300 |
Bore/Stroke (mm) |
114×135 |
Emission Standard |
Euro Ⅱ |
Equipment |
Gearbox |
Fast 6DS95T |
Clutch |
Monolithic, dry, diaphragm spring |
Front Axle |
DONGFENG DANA AXLE, 6.5 Ton |
Rear Axle |
DONGFENG DANA AXLE,9 ton single-stage deceleration |
Suspension |
multiple leaf spring 9/11 |
Steering |
integral power steering gear |
Brake |
Dual circuit air braking, drum brake |
Fuel Tank |
200LX2 |
Tyre |
295/80R22.5 Double Coin, 2 spare tires |
Battery/Dynamo |
6-QA-165/150A |
Others |
Clutch booster, air dryer, WABCO ABS, retarder |
Body Specification |
Body Construction |
Semi-load-bearing, flat floor, SHITENG style |
Interior Trim |
Formed soft interior trim, double luggage rack, reading lamps |
Door & Door Pump |
Front outside-swing pneumatic passenger door, aluminium-alloy driver door, assisted step |
Side Window |
The last piece of glass on the right has a push-pull switch on the upper part, the lower part is fixed, and the rest of the glasses has a push-pull switch on the lower part, all of which are black windows with emergency exit signs |
Windscreen |
Front rubber-laminated windscreen, full-closed rear windscreen |
Rear Mirror System |
Manual motion |
A/C System |
ZHONGTONG Tongsun A/C, fans for drivers |
Heating System |
Natural wind defroster |
Audiovisual System |
MP3 player |
Lamps |
New type combination headlight front and rear, rear brake light |
Wipers |
Opposed electric wiper |
Door |
Aluminum luggage door with lateral movement |

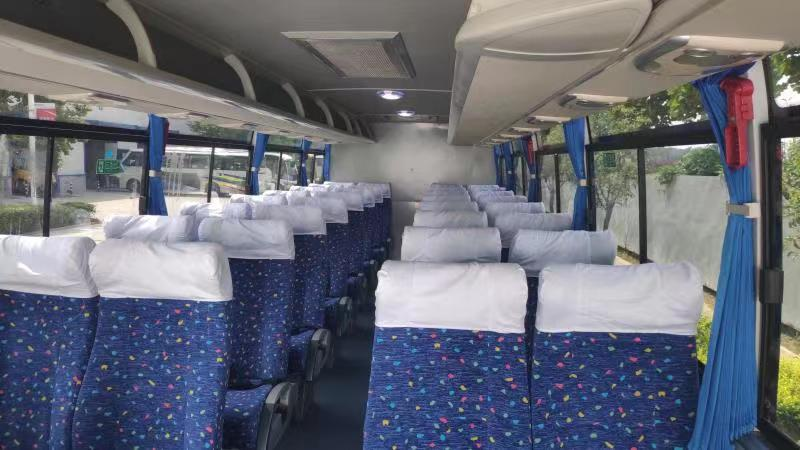

Seat |
2+2 type, 32+1, ZHOGNTONG ZTZY3210 adjustable passenger seats with pillowcase; safety belt for each seat; ZTZY1050 damper seats for drivers; The last row of seats is converted into a luggage compartment, the rear skylight is at the top of the luggage compartment, and a lamp is installed in the luggage compartment (the same as the order number 10049319). The original last row of seats is not installed, so it will leave with the car. |
Paint |
Plain lacquer (Made in China) |
Others |
Checked floor leather, passenger barrier, electronic clock, blue cloth side curtain, driver's side curtain, front double sunshade, a 4kg fire extinguisher, car armrest on instrument panel, escape valve inside and outside the car, skylight, water chute, USB seat charger interface of the whole car, refrigerator, microphone
|
